Details

---

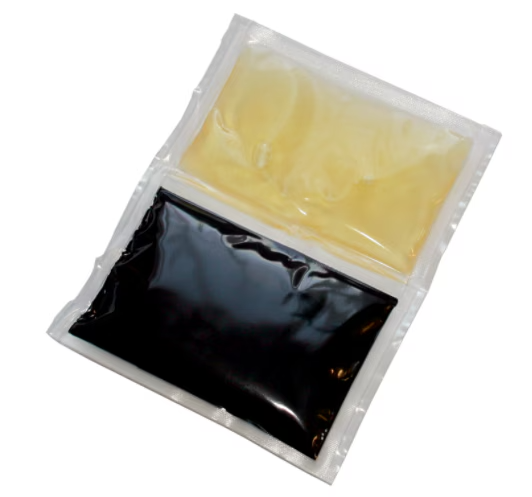

3M™ Scotchcast™ Electrical Resin 2131 is a 2-part, flame-retardant compound, useful for coating cable jackets when splicing or repairing mine and portable cables. This permanent, polyurethane, liquid-type resin has a unique formulation to use in rugged conditions. High dielectric strength offers a very good electrical insulating property to the resin.

Key Features of 3M™ Scotchcast™ Electrical Resin 2131:

• Typical hardness (ASTM D2240) - 82 Shore A
• Has 17-minute gel time at 73 °F (23 °C)
• Useful for replacing or repairing the jacket on both single- and multi-core power cables
• Withstands a temperature range of 32 to 194 °F (0 to 90 °C)
• Elongates 339% longer than its original size for easy insulation or wrapping
• Flame-retardant
• Rated up to 1 kV
• RoHS 2011/65/EU Compliant

Dangerous Goods Indicator : ZND

Color Family : Black
